ADJUSTABLE PIPE STANDS

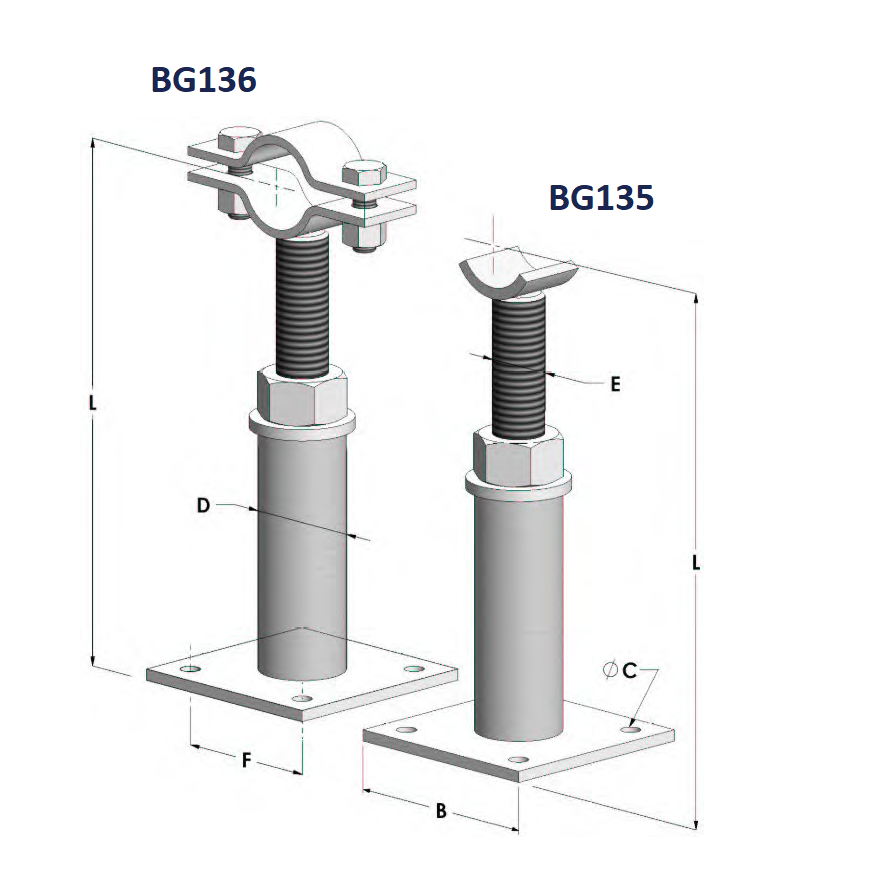

ADJUSTABLE PIPE STANDS BG135-136

BG135 WITH CRADLE
BG136 WITH CLAMP

Material	Max Operating Temperature	Surface Finish
Carbon Steel	200°C	Hot Dip Galvanised

General Notes

Designed to support a vertical load only.
Client to supply dimension ‘L’ (Base Plate to Centreof Pipe).
Vertical adjustment achieved by adjusting nut.
When the required height is achieved, the nut is tobe tack welded to pipe cap.
Not suitable for supporting pipes with axial or lateral movement or for pipe sizes above 600NB.
Available adjustment ±75mm from nominated dimension L. e.g., 50NB pipe stand cannot be adjusted from 370mm to 1750mm.

QUICK QUOTE Custom Enquiry FAQs

Product Data

Product is available with varying finishes and technical specifications where shown. Use the tabs, technical information and part numbers below to request an online quote (or reference the part number in your specification).

Type

BG135
BG136

Type BG135 BG136
Part No.	Pipe NB	A (mm)	B (mm)	D (mm)	C (mm)	F (mm)	Dim (L) - min (mm)	Dim (L) - max (mm)	E (mm)	Add to quote

135001	50	60.3	150	50	14	M108	370	1,750	M36
135002	65	76.1	150	50	14	M108	380	1,750	M36
135003	80	88.9	175	80	18	M121	390	1,750	M48
135004	100	114.3	175	80	18	M121	410	1,750	M48
135005	150	168.3	200	80	22	M134	440	1,750	M48
135006	200	219.1	250	80	22	M184	470	1,750	M48
135007	250	273	250	80	22	M184	500	1,400	M48
135008	300	323.9	250	100	22	M184	530	1,400	M56
135009	350	355.6	300	100	26	M222	600	1,400	M56
135010	400	406.4	300	100	26	M222	630	1,400	M56
135011	450	457	350	150	32	M254	690	1,400	M72
135012	500	508	350	150	32	M254	720	1,400	M72
135013	600	610	350	150	32	M254	790	1,400	M72
136001	50	60.3	150	50	14	M108	370	1,750	M36
136002	65	76.1	150	50	14	M108	380	1,750	M36
136003	80	88.9	175	80	18	M121	390	1,750	M48
136004	100	114.3	175	80	18	M121	410	1,750	M48
136005	150	168.3	200	80	22	M134	440	1,750	M48
136006	200	219.1	250	80	22	M184	470	1,750	M48
136007	250	273	250	80	22	M184	500	1,400	M48
136008	300	323.9	250	100	22	M184	530	1,400	M56
136009	350	355.6	300	100	26	M222	600	1,400	M56
136010	400	406.4	300	100	26	M222	630	1,400	M56
136011	450	457	350	150	32	M254	690	1,400	M72
136012	500	508	350	150	32	M254	720	1,400	M72
136013	600	610	350	150	32	M254	790	1,400	M72
